Description
PRE-ORDER Expected to Arrive June 26th.

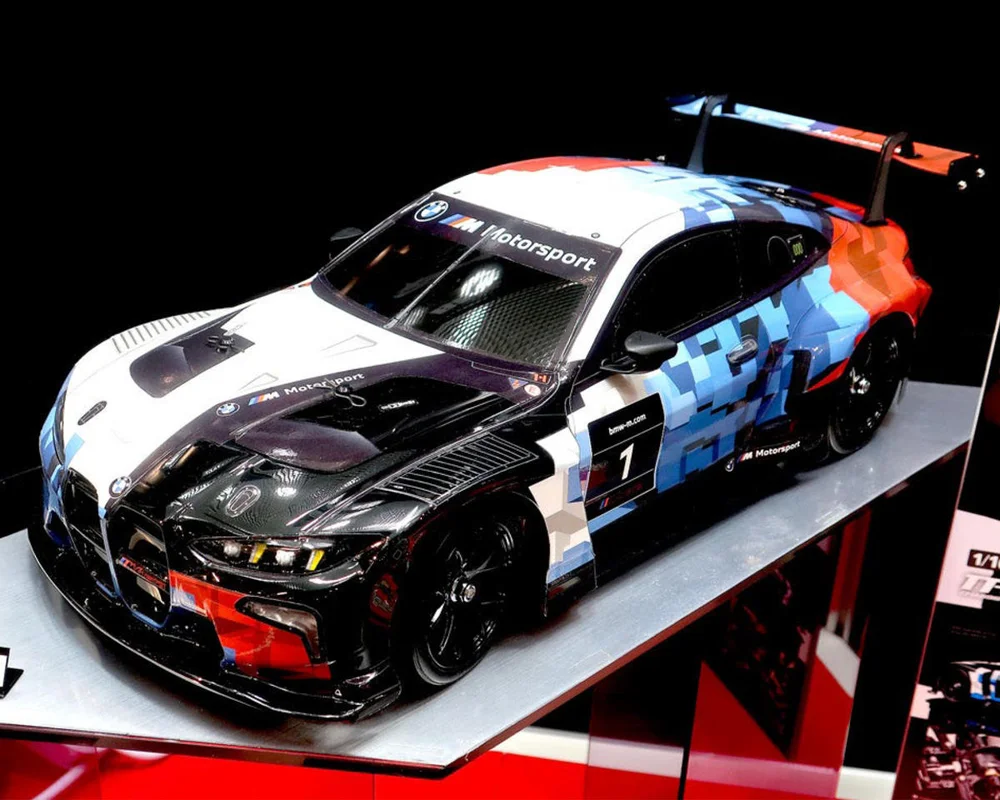

Tamiya BMW M4 GT3 EVO 1/10 4WD On-Road Racing Kit
Bring one of modern GT racing’s most iconic machines to the track in 1/10 scale. The Tamiya BMW M4 GT3 EVO is built around the proven TT-02 shaft-driven 4WD chassis — a platform renowned for its balanced performance, straightforward assembly, and broad tuning range. The clear polycarbonate body faithfully recreates the M4 GT3 EVO’s aggressive race-ready profile, complete with wide fenders, front splitter, rear diffuser, and a prominent rear wing for realistic downforce aesthetics. Out of the box, the kit includes a torque-tuned Mabuchi RS-540 brushed motor and a Hobbywing Quicrun 1060 ESC — a capable pairing that delivers smooth power delivery and reliable on-road performance right from the first run. With ten selectable gear ratios, two wheelbase options, dual ground clearance settings, and fully independent double wishbone suspension, the TT-02 platform gives drivers plenty of room to refine their setup as their skills progress.
Kit Notice: This is an unassembled kit requiring builder-supplied radio gear and other components. Photos depict a completed build for reference only. See the Needed to Complete list below for all required items.
Connector Note: When upgrading to a high-current LiPo battery, we recommend also upgrading your battery connector to an XT60 or T-Style connector for safe, reliable power delivery.
- Clear, untrimmed BMW M4 GT3 EVO polycarbonate body with wide-body GT styling
- Shaft-driven 4WD TT-02 chassis with balanced left-battery / right-motor layout
- Fully independent double wishbone suspension front and rear
- Ten selectable gear ratios for versatile tuning
- Two wheelbase options, two ground clearance settings, two tread configurations
- Grease-filled differentials for smooth, low-maintenance power transfer
- Low-maintenance friction-style shocks
- Torque-tuned Mabuchi RS-540 brushed motor
- Hobbywing Quicrun 1060 ESC — IP-67 waterproof, built-in capacitor, auto throttle calibration
- Brake disc-style wheel hubs with gunmetal 10-spoke wheels and slick tires
- High-strength ABS chassis construction
- Stickers and window masking included for body painting
| Specification | |
|---|---|
| Scale | 1/10 |
| Drive | 4WD |
| Input Voltage | 7.2V |
| Length | 17.44in (443mm) |
| Width | 7.4in (188mm) |
| Height | 5.19in (132mm) |
| Wheelbase | 10.11in (257mm) |
| Assembly Level | Kit |
| In the Box | Qty |
|---|---|
| Tamiya BMW M4 GT3 EVO Kit | 1 |
| Hobbywing Quicrun 1060 ESC with Tamiya Connector | 1 |
| Torque-Tuned 540 Brushed Motor | 1 |
| Manual | 1 |
| Needed to Complete | Qty |
|---|---|
| 2-Channel Radio System | 1 |
| Standard or Low-Profile Steering Servo | 1 |
| 7.2V NiMH Battery with Tamiya Connector | 1 |
| Compatible Battery Charger | 1 |
| Polycarbonate Paint for Body | — |
