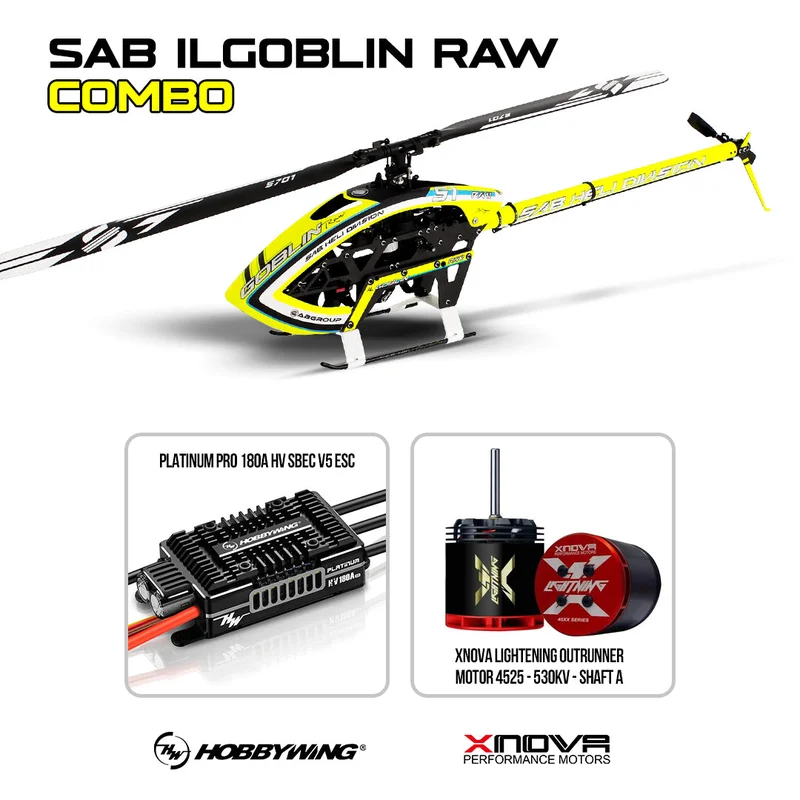

SAB ilGoblin 700 Raw with Xnova Motor4525 – 530KV and HobbyWing 180A HV SBEC V5 ESC Combo

Description

Package included:

1 x  IlGoblin Raw (SG763)

1 x HobbyWing Platinum PRO 180A HV SBEC V5 ESC

1 x Xnova Lightening Outrunner Motor 4525 – 530KV For RC Helicopter Shaft A

IlGoblin Raw (SG763)

ILGoblin RAW is a simpler version of the PRO with an aluminum tail boom, this version will have the same main components of the ilGOBLIN PRO.

Specifications:

AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)

Main rotor diameter: 1576 mm (with 700 mm main blades)

Main blade length: 650 to 730 mm

Tail rotor diameter: 292 mm (with 110 mm tail blades)

Tail blade length: 105 to 115 mm

Cyclic Servos: Standard size 40 mm

Tail Servo: Standard size 40 mm

Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)

Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)

Main shaft: 15 mm, Tail shaft: 8 mm

Aluminum tail boom

Typical motor: 12S, 480/560 KV

Battery room: 50x60x300 mm

KIT Includes:

• 21T motor pulley (other pulley sizes available).

• 1 battery tray with straps.

• S701 (700 mm main blades)

• S105 (105 mm tail blades)
