Description
Specification:
Working voltage: 4.8-6.0V
The fastest speed:
5.0V-0.12sec/60°
6.0V-0.10sec/60°
Locked-rotor torque:
5.0V-5.2kg-cm/(72oz-in)
6.0V-6.5kg-cm/(90oz-in)
Output gear: 25T
Product size: 30x10x30mm
Product weight: 23g
Operating stroke: 180±10°(500-2500μsec)
Rotation direction: 180°(1000-2000μsec)
Angle limit: 220
Neutral point: 1520μsec
Maximum stroke: ≈180°(500-2500μsec)
Pulse width range: 500-2500μsec
Death drive pulse width: 2μsec
Wire length: JR180mm
Wire model: #22PVC

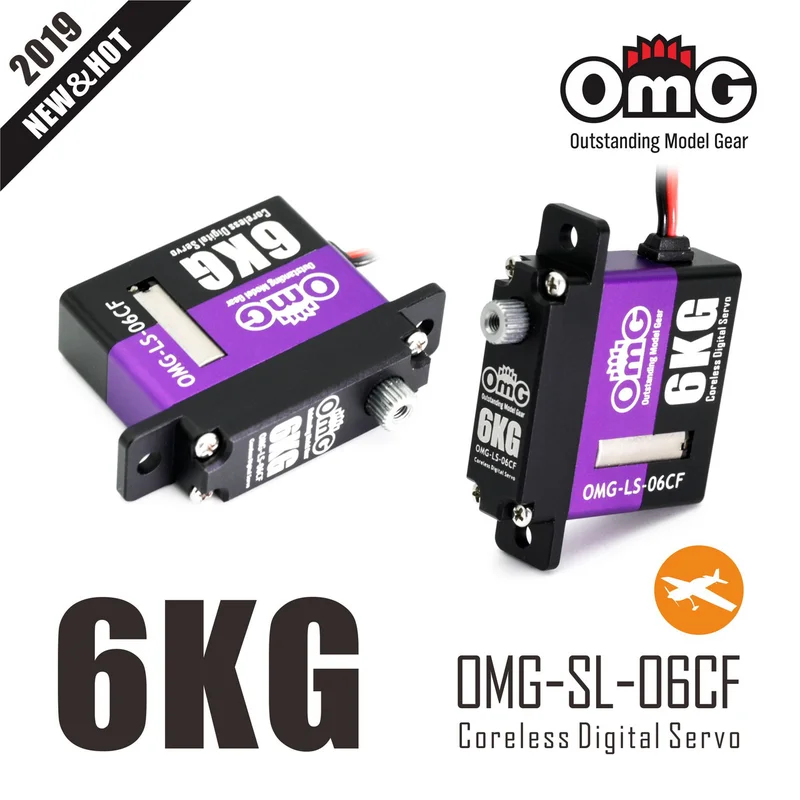

All-metal exposed hollow cup motor high-pressure digital medium-sized flat steering gear, suitable for turbojet aircraft and balsa aircraft.
