Description
Fit for foam plane, Lightwood aircraft .Top & bottom cover in plastic cover, middle cover in aluminum,Aluminum Titanium gear, mini size, low voltage servo.

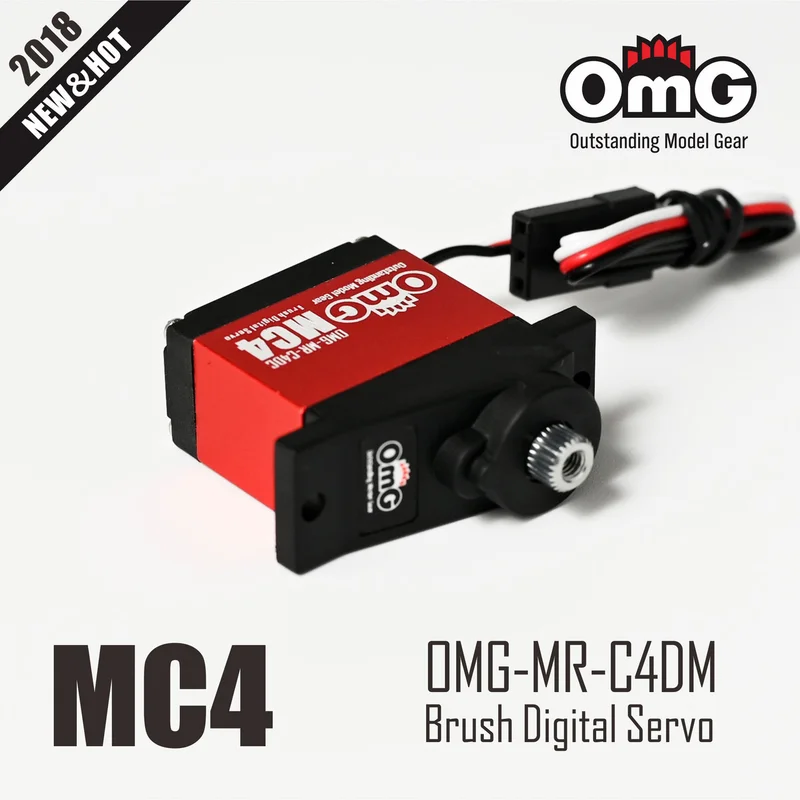

Item No.OMG-MR-C4DM
Modulation:Digital
Motor Type:Brushed
Bearing Type:Metal
Gear Type:Metal
Operating Voltage:4.8V－6.0V DC Volts
Speed:
4.8V: 0.15sec/60°
6.0V: 0.13sec/60°
Stall Torque:
4.8V: 3.1kgf.cm (43oz.in)
6.0V: 3.9kgf.cm (54oz.in)
Weight: 15g(0.53oz)
Case Material: Middle Aluminum Casing With Plastic Top and Bottom
Dimensions:22.8*12*29.4mm (0.90×0.47×1.16in)
Operating stroke: 180±10°(500-2500μsec)
Rotation direction: 180°(1000-2000μsec)
Angle limit: 220
Neutral point: 1520μsec
Maximum stroke: ≈180°(500-2500μsec)
Pulse width range: 500-2500μsec
Death drive pulse width: 2μsec
Wire length: JR120 mm
Wire model: #22PVC
▶For RC Plane Modle
