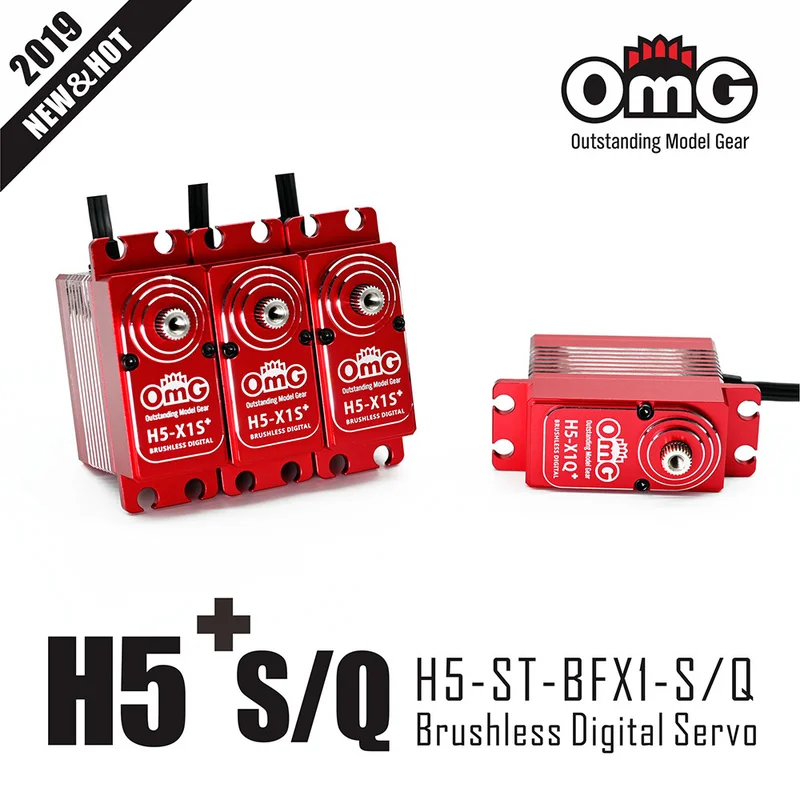

OMG Full metal brushless Digital standard servo H5-X1S+ for 700 Helicopter cyclic , H5-X1Q+ for 700 Helicopter Tailwith Stainless Steel Gear (1 pc)

Description

OMG Full metal brushless Digital standard servo H5-X1S+ , H5-X1Q+ with Stainless Steel Gear for 700 Helicopter

Application:

H5-X1S+: 700 Helicopter cyclic / RC Car / RC Airplane Moel

H5-X1Q+: 700 Helicopter Tail/RC Car / RC Airplane Moel

H5-X1S+ Specification:

Case: Full Metal

Motor: Brushless

Gear: Stainless Steel

Operating voltage：4.8-8.4V

Operating speed:

6.0V-0.094sec/60′

7.4V-0.075sec/60′

8.4V-0.066sec/60′

Dynamic torque:

6.0V-17.00kg-cm

7.4V-21.00kg-cm

8.4V-24.00kg-cm

Horn gear spline：25T

Size：41x20x38mm

Weight：77g

Limit angle:180±10°(500-2500μsec)

Operating travel:90°(1000-2000μsec)

Rotating direction :1500-2000μsec

Neutral position :1500μsec

Maximum travel:≈150°(800-2200μsec)

Pulse width range :800-2200μsec

Connector wire length:300 ± 5 mm

Connector wire gauge:＃28PVC

Dead band width:2μsec
