Description

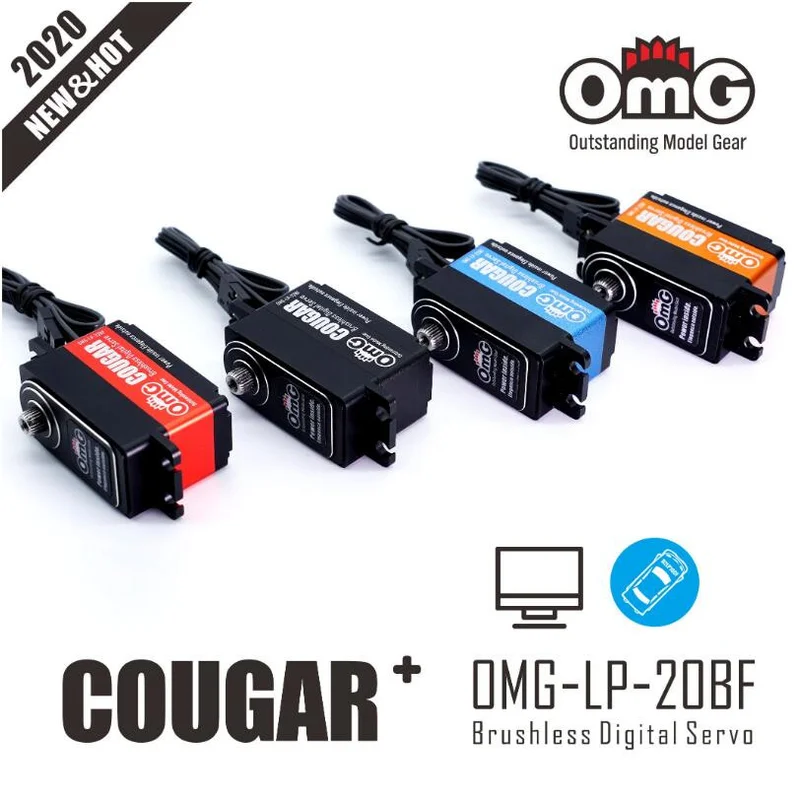

OMG 20KG OMG-LP-20BF COUGAR+ Competition Class Full Metal Brushless Digital servo fit in 1/10 Drift and Touring Car

Specification:
Model: OMG-LP-20BF

Size: 41*20.5*26mm (low profile)

Weight: 60g

Gear: Alum

Motor: Coreless

Type: Digital

Case: Metal

Horn gear spline：25T

Speed (sec/60 Degree):
6.0V: 0.072
7.4V: 0.068
8.4V: 0.06

Torque (kg.cm):
6.0V: 16.0
7.4V: 20
8.4V: 25

Application:

1/10 Drift and Touring Car Competition Class

Limit angle:180±10°(500-2500μsec)

Rotating direction:180°(1000-2000μsec)

Operating travel :220

Neutral position :1520μsec

Maximum:≈180°(500-2500μsec)

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:200 mm
