Description

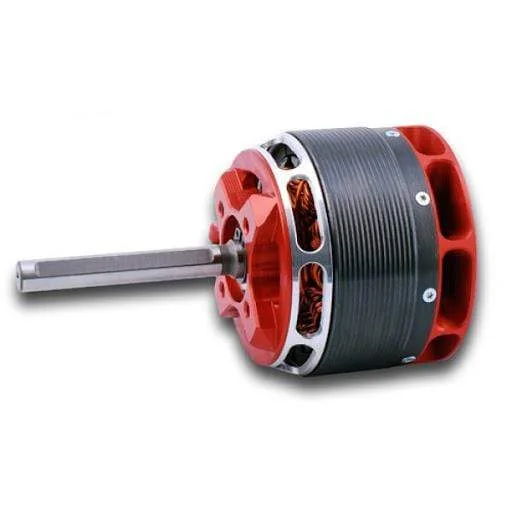

Already its size makes the PYRO 800 impressive: an outside diameter of 63 mm and a shaft diameter of 8 mm suggest the enormous power of this KONTRONIK motor.
The PYRO 800 convinces with a sophisticated design, bigger bearings and a screw-fixed motor can.
This allows power transition of more than 5 kW continuous power.
The PYRO 800 fits perfect for the big helicopters of the 770 / 800 class, and also for Scale and 3D helicopters.
The PYRO-800 in short:
- Neodym magnets, heat resistent up to 150 degree C
- Dedicated enameled wire, heat resistent up to 300 degree C
- Optimized metal sheets
- Optimized ventilation
- Radial fan
- Optimized magnet circuit
Specs:
- 480 RPM/V
- Max. 30,000 RPM
- 8 mm shaft
- 14 poles
- 32 mm free shaft length
- 490 g / 17.2 oz
- 5 kW
- 14 mΩ Ri
