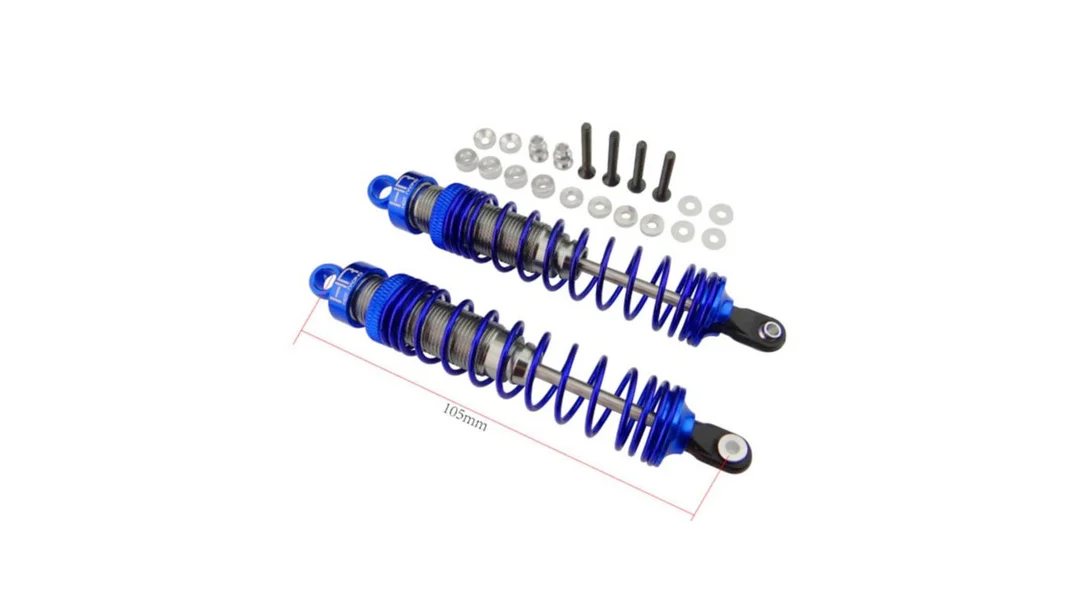

Hot Racing 105mm Aluminum HD Big Bore Shock Set (2) (HRATD105X06)

Description

FEATURES:

• – CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
• – “Big Bore” threaded shock bodies
• – CNC machined 11mm Delrin pistons
• – 3.5mm stainless steel shock shafts
• – Gunmetal and blue anodized aluminum components
• – Vented shock caps with bladder seals for consistent rebound dampening
• – Threaded shock collars with o-rings to prevent unwanted movement
• – Composite plastic lower shock ends with aluminum balls
• – Fully assembled, just add shock oil and bleed

YOU WILL RECEIVE:

• – Two (2) assembled shocks
• – Two (2) M3x20mm flat head cap screws
• – Two (2) M3x18mm button head cap screws
• – Two (2) 3mm countersunk washers
• – Two (2) 5.9 hollow balls
• – Four (4) 1.5mm thick spacers
• – Four (4) 3mm thick spacers

REQUIREMENTS:

• – Silicone shock oil of modeler’s choice and bleeding per the typical bladder shock bleeding procedure
• – Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
• – Snap ring pliers when rebuilding lower seal

SPECIFICATIONS:

• – Extended length: 105mm
• – Compressed length: 75mm
• – Overall length: 115mm
• – diameter: 19mm
• – Spring: ~5.8lb/in, 1.54mm wire, 14 turn dual rate, 19.3mm OD, 72mm long
