Description

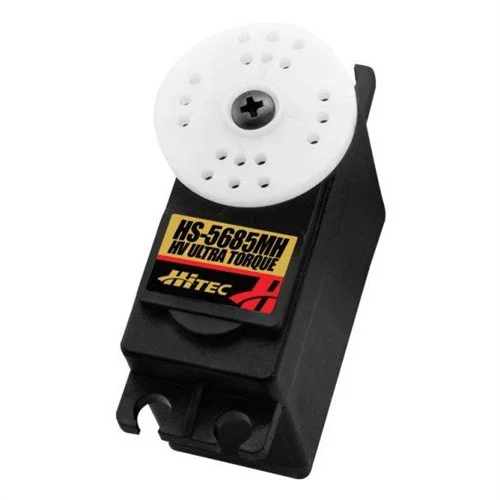

This is the Hitec HS-5685MH High-Voltage High-Torque Metal-Geared Digital Servo. The HS-5685MH High Torque HV Metal Gear servo was designed to run on a 2-cell 7.4V LiPo battery to give you extra torque and speed (up to 179 oz/in of torque at 7.4V). Featuring a heavy-duty metal gear train and our exclusive programmable digital circuit for reliable, durable performance, these servos can be used in a wide range of applications.
Our affordable digital sport servos are the perfect companion for 1/10th to 1/8th scale on- and off-road vehicles, as well as larger sport helicopters and large scale aerobatic aircraft up to 25-percent.
Features
- Programmable Digital Circuit
- Heavy-Duty Metal Gear Train (MK first gear)
- 7.4V Optimized Motor
- Dual Ball Bearing Supported Output Shaft
Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset
Performance Specifications
Operating Voltage Range (Volts DC)6.0V ~ 7.4V
Speed (Second @ 60°)0.20 ~ 0.17
Maximum Torque Range oz. / in.157 ~ 179
Maximum Torque Range kg. / cm.11.3 ~ 12.9
Current Draw at Idle7 mA
No Load Operating Current Draw350 mA
Stall Current Draw2,600 mA
Dead Band Width4 µs
Physical Specifications
Dimensions (Inches)1.59 x 0.77 x 1.48
Dimensions (Metric)40.6 x 19.8 x 37.8
Weight (Ounces)2.01
Weight (Gram)57.0
Circuit TypeG1 Programable Digital
Motor Type3 Pole Metal Brush Ferrite
Gear MaterialMetal
Bearing TypeDual Ball Bearing
Output Shaft (type / Ømm)Standard 24
Case MaterialPlastic
Dust / Water ResistanceN / A
Connector Gauge (AWG) / Strand Count22 / 60
