Description

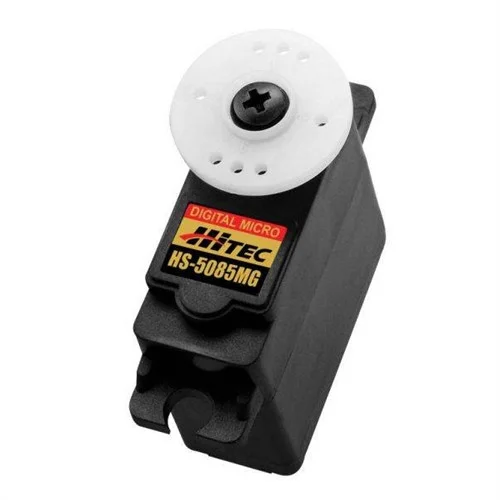

This is the Hitec HS-5085MG Digital Mighty Micro Ball Bearing Metal Geared Servo, with up to 60 oz/in of torque at 6V. A digital version of one of Hitecs most popular micro servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, helis, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.
Features
- Standard Servo Performance from a Micro Servo
- Rugged Metal Gears
- Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit
- Stronger Holding Power than the Analog Version
Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset
Specifications
Size Category: Minis and Micros
Type: Digital
Torque: 50 oz-in (3.6 kg-cm) @ 4.8V; 60 oz-in (4.3 kg-cm) @ 6.0V
Speed: 0.17 sec/60° @ 4.8V; 0.13 sec/60° @ 6.0V
Length: 1.14 in (29mm)
Width: 0.51 in (13mm)
Height: 1.18 in (30mm)
Weight: 0.77 oz (22g)
Bushing Or Bearing: Bearing
Bearing: Single
Motor Type: 3 pole ferrite
Gear Type: Metal
Voltage: 4.8V-6.0V
