Description

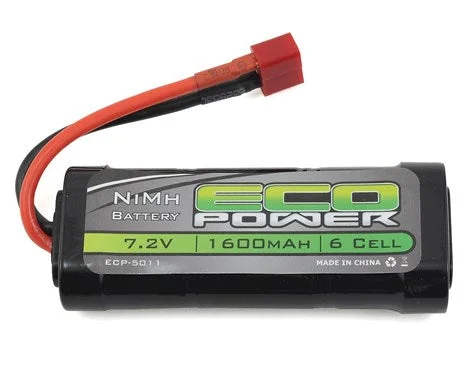

Specifications:
Chemistry: NiMH
Voltage: 7.2 nominal
Number of Cells: 6
Capacity: 1600mAh
Weight: 145g
Dimensions: 37x93x19mm
Connector Type: T-Style
Configuration: 2/3A Stick
Max Charge Rate: 1C
Recommended guidelines for handling 2/3A NiMH batteries:
- 1. Charge the battery with a quality charger, at a maximum current of 1.5A.
- 2. Charger cut-off setting: Peak voltage = 5mV per cell, Temperature <55ºC, and best with timer. [Example on Peak voltage calculation: 6-cell pack = 5mV x 6 = 0.03V]
- 3. The battery can offer high current discharge, and are rated to a level of 5~10A (plug dependent).
- 4. If you expect to leave the battery idle for >2 weeks, charge it for 1/3 capacity (say, 1A for 15 minutes)
- 5. Avoid storing the battery in hot or humid environment. Best temperature would be around 20~25ºC.
