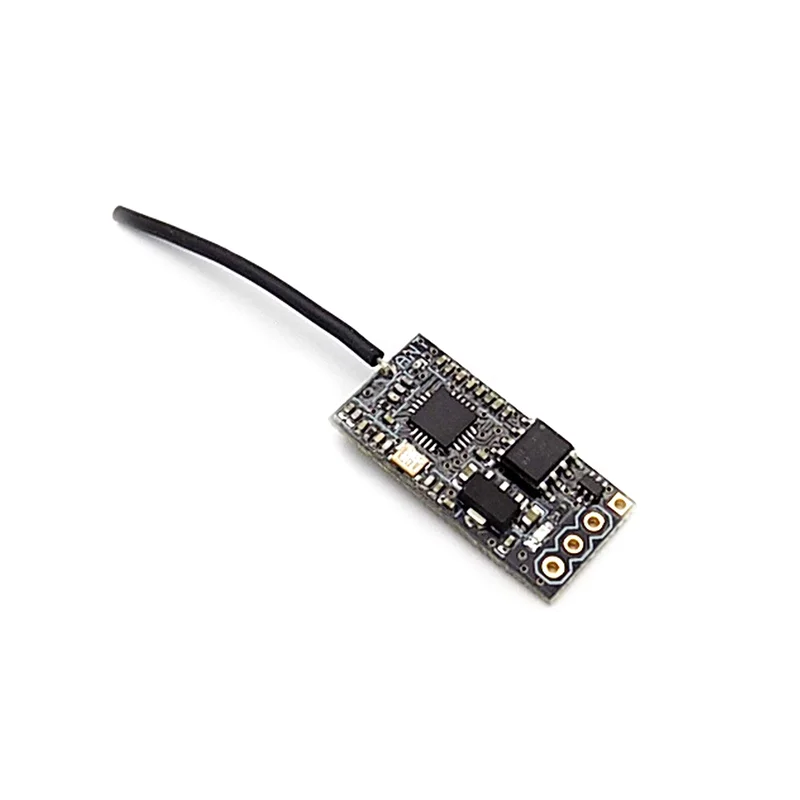

6Ch Flysky Compatible Mini Receiver for i6 i6x AFHDS 2A PPM Output

Description

Binding procedure:

1 – Solder the two pins: Binding and GND

2 – Power to the receiver with +5v battery or connected to a flight controller with +5v output, the blue LED should start to Flashing , indicating it is ready to bind

3 – Turn on the transmitter and enter binding mode ,waiting for a second, the blue LED light is solid, indicating bind successfully

LED Status – Binding(Flashing), Success(Solid), Normal Mode(Flashing), Signal Lost(Off)

Features:

• Compatibility: FS-I6,TH9X GT2B,GT3,GT3B,GT3C etc. / ER9X,OPENTX with Flysky tuner etc. / Walkera D7E with A7105 Module and etc.

Specifications:

• Item Name: Mini AFHDS Reciever
• Channels: 6CH PPM output
• Frequency Range: 2.4GHz
• Power: 5V
• Work mode: AFHDS
• Transmit distance: About 100m
• Without Failsafe
• Size: 11mm*23mm
• Weight: 0.6g

Package Contents:

• 1 xMini AFHDS 2.4GHz Receiver
